Cleaning and maintaining external ports and connectors

Introduction

External connectors on laptops and desktop PCs are designed for reliable operation over many years. Under normal conditions, they require little or no maintenance. However, heavy usage, environmental exposure and gradual contamination can occasionally affect their reliability.

This can be particularly noticeable with demanding high-bandwidth connections such as HDMI, DisplayPort, USB4 and Thunderbolt. Even relatively minor contact degradation may affect devices that operate close to the limits of their available signal quality.

We do not recommend cleaning connectors routinely if they are working correctly, and if the device is mostly used in regular domestic, indoor environments. However, careful cleaning can be a useful troubleshooting and maintenance measure when certain symptoms or environmental conditions apply.

This article explains when contact cleaning may be beneficial, why electrical contacts can deteriorate over time, and how to clean them without damaging the hardware.

The instructions focus on externally accessible connectors, including the corresponding cable plugs. They do not cover internal connectors such as RAM or SSD slots.

When should I consider cleaning my connectors?

Contact cleaning may be worth considering in the following situations:

These factors can occur individually or in combination. For example, a laptop that has been used extensively in a humid environment might continue working perfectly with an ordinary desktop monitor but develop intermittent connection problems with a high-resolution VR headset.

However, dirty or corroded contacts may not be the only cause of such symptoms. Damaged cables, incompatible adapters, mechanical defects and software or firmware issues can produce similar behaviour.

Why are high-bandwidth connections particularly relevant?

Modern digital interfaces transmit data at extremely high speeds.

For example, DisplayPort 2.1 supports different bandwidth configurations, including 40, 54 and 80 Gbps of raw bandwidth across four lanes. The actual connection speed depends on the capabilities of both devices and the selected transmission mode.

• See also: What is the meaning behind the version numbers in HDMI and DisplayPort?

At these speeds, the electrical properties of the entire connection become important. This includes the laptop's output circuitry, the physical connector, the cable and the connected peripheral.

Digital interfaces employ various mechanisms to maintain reliable transmission, but these cannot compensate for unlimited signal degradation. When the remaining signal margin becomes insufficient, the result may include:

• Brief interruptions or complete loss of the display signal.
• Intermittent device disconnections.
• Failed connection attempts or repeated link establishment.
• Reduced connection capabilities, depending on the interface and its fallback mechanisms.

A long cable introduces additional signal attenuation. Every connector and adapter also contributes to the characteristics of the signal path. The same applies to peripherals that do complex signal routing across a large number of devices, such as docking stations.

Why can electrical contacts deteriorate?

Electrical connectors rely on small metal contact surfaces that must establish a stable electrical connection when a plug is inserted.

Several physical and chemical processes can interfere with this connection.

Contamination

Dust, fibres, skin oils and other contaminants can accumulate inside a connector or on the corresponding plug. These particles may prevent the plug from seating correctly or interfere with the contact surfaces. This is particularly relevant for USB-C because its compact design leaves relatively little space around the central contact tongue.

Oxidation and corrosion

Many modern connectors use gold-plated electrical contacts because gold is highly resistant to oxidation and provides reliable electrical contact properties.

However, the gold coating is relatively thin. Other metals may be present underneath it, while different parts of the connector may use different surface finishes.

Over time, environmental exposure or mechanical wear can allow corrosion to develop on less resistant materials. High humidity, salt-containing air, perspiration and other contaminants can accelerate some of these processes.

The resulting corrosion products can interfere with electrical contact.

Importantly, gold itself does not oxidise under normal operating conditions. Corrosion-related problems generally involve exposed underlying materials, other connector components or contamination of the contact surfaces.

Mechanical wear and fretting corrosion

Every connection cycle produces some mechanical interaction between the plug and the socket. This is normal and accounted for in connector design. However, repeated connection cycles gradually contribute to wear.

Small relative movements between connected contacts can also cause a phenomenon known as fretting corrosion.

Such movements may result from vibration, cable movement or temperature changes. Over time, microscopic wear particles and corrosion products can accumulate at the contact interface.

Long or heavy cables can introduce additional mechanical stress, especially when their weight is not adequately supported.

Result: reduced electrical signal quality

Contamination, corrosion or mechanical degradation can alter the electrical characteristics of the connection. Depending on the affected contacts and interface, this may increase contact resistance, introduce intermittent contact interruptions or affect the impedance characteristics of the high-speed signal path. At high data rates, these changes can contribute to transmission errors and connection instability.

Before cleaning: Rule out other possible causes

Cleaning can remove certain contaminants and surface deposits. However, cleaning cannot restore worn contact plating, damaged pins or weakened mechanical contacts. If the connector has suffered permanent damage, repair or replacement may be necessary.

We recommend checking the following before attempting more extensive cleaning:

• Try another known-good, appropriately certified cable cable that is suitable for the required bandwidth.
• Check whether the same laptop port works reliably with another monitor or device.
• For troubleshooting, connect the peripheral as directly as possible, avoiding unnecessary adapters and extensions.
• For displays, try a lower refresh rate or resolution to determine whether the problem occurs primarily under demanding transmission conditions.
• Make sure the plug is fully inserted and that the cable is not placing excessive sideways pressure on the port.

If these tests suggest that a particular physical connection is responsible, cleaning may be a reasonable next step.

What cleaning materials are recommended?

For careful cleaning of external connectors, the following tools can be useful:

	Material	Purpose	Example

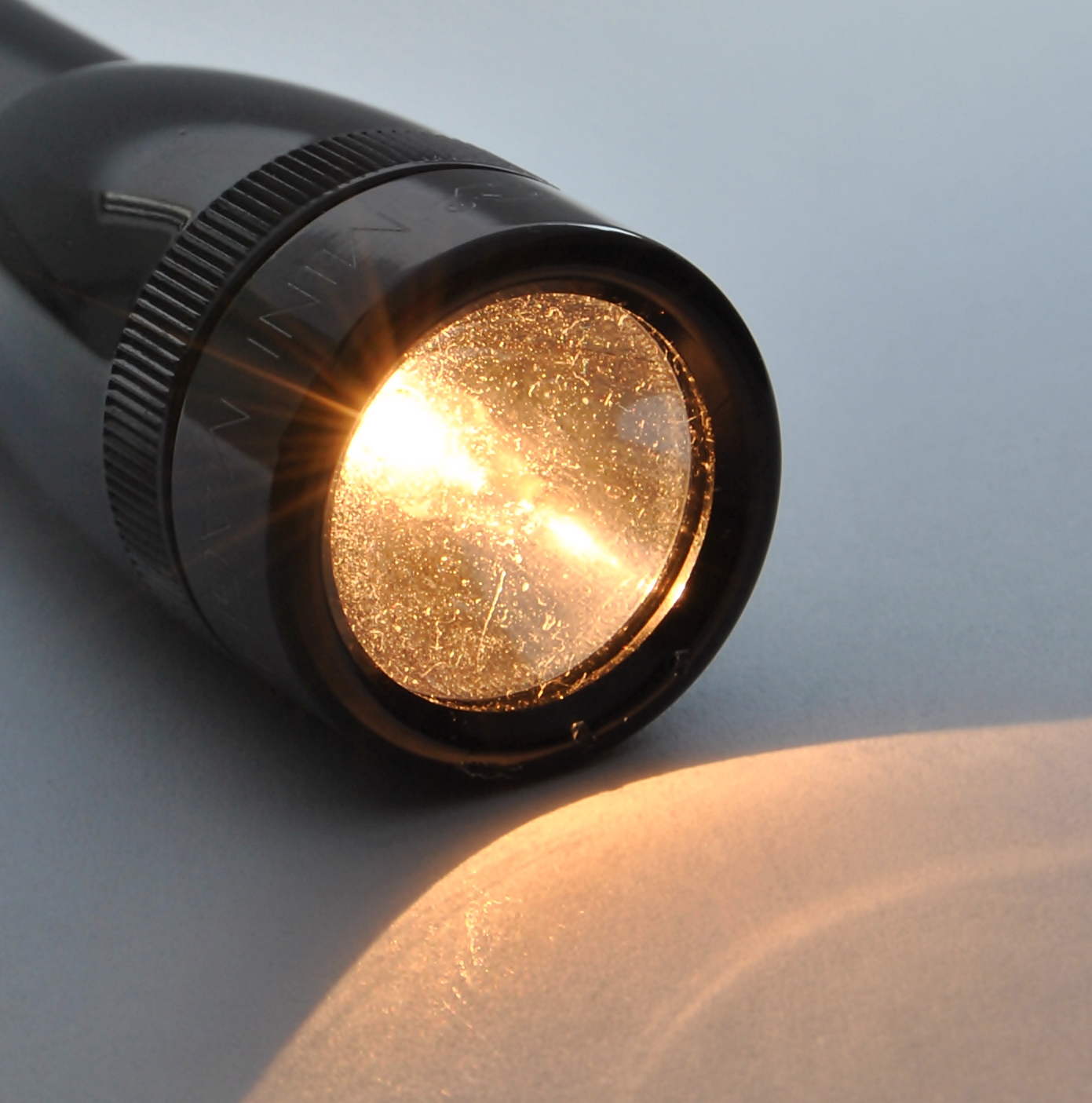

	Small flashlight	Inspecting ports for visible contamination or damage	Your phone's torch function.

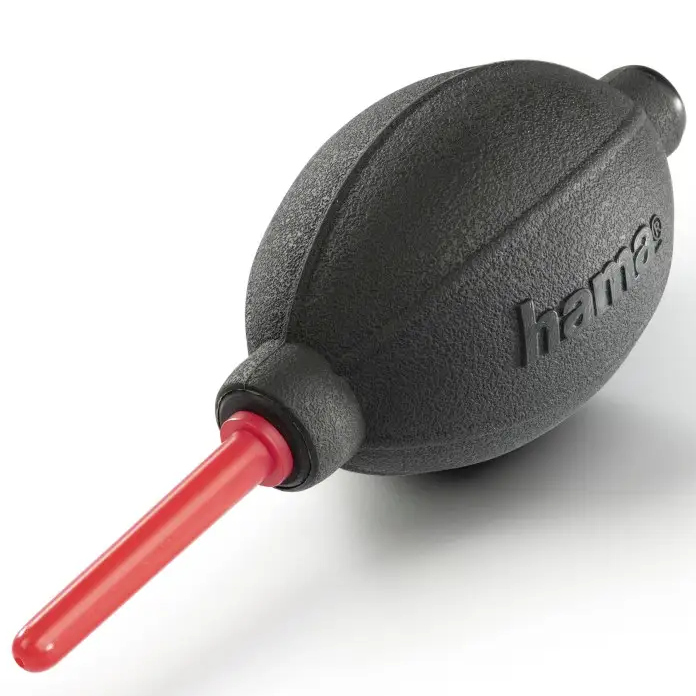

	Manual rubber air blower	Removing loose dust and particles without physical contact	Click here

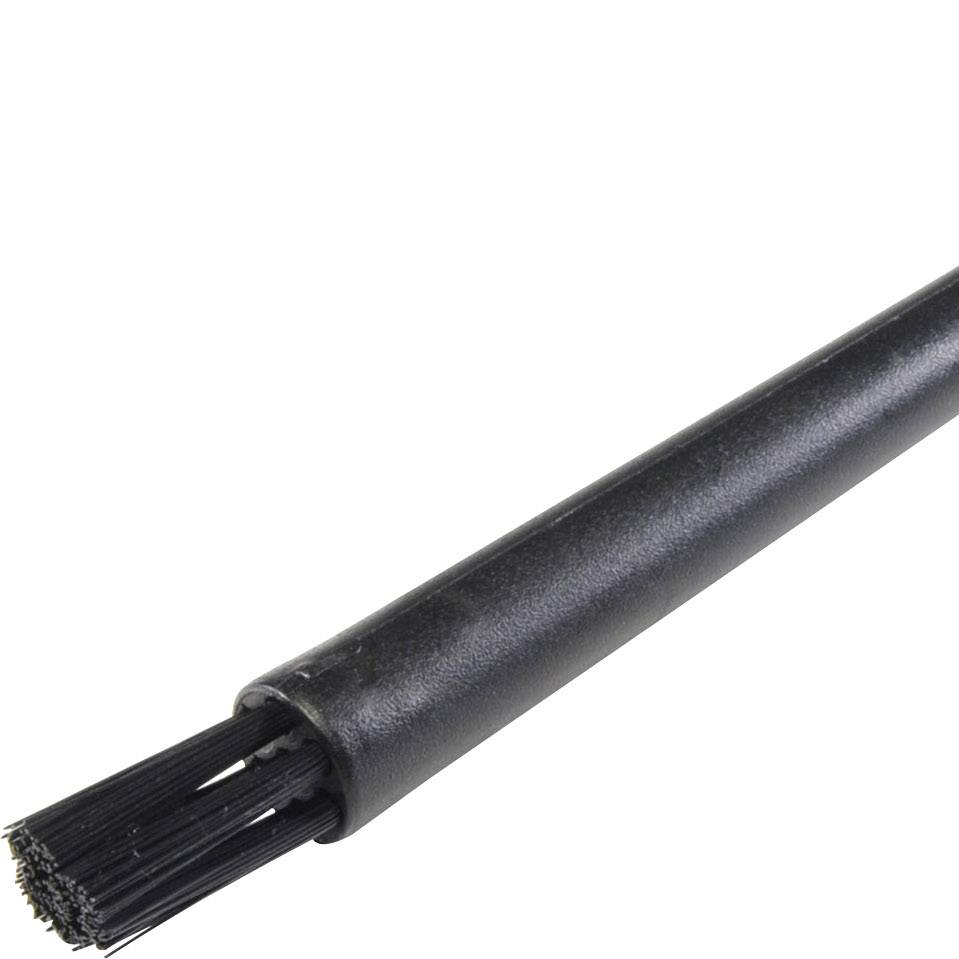

	Soft, narrow, ESD-safe cleaning brush	Gently loosening dust and light deposits	Click here or here

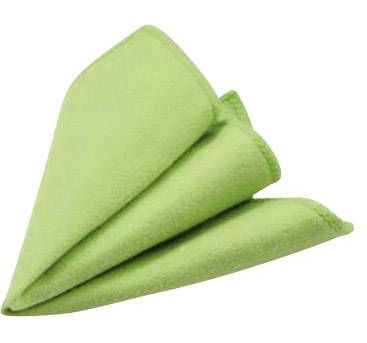

	Clean, lint-free microfibre cloth	Cleaning accessible exterior surfaces and cable plugs	Click here or here
	Precision foam swabs for electronics	Cleaning small, accessible contact areas	Click here

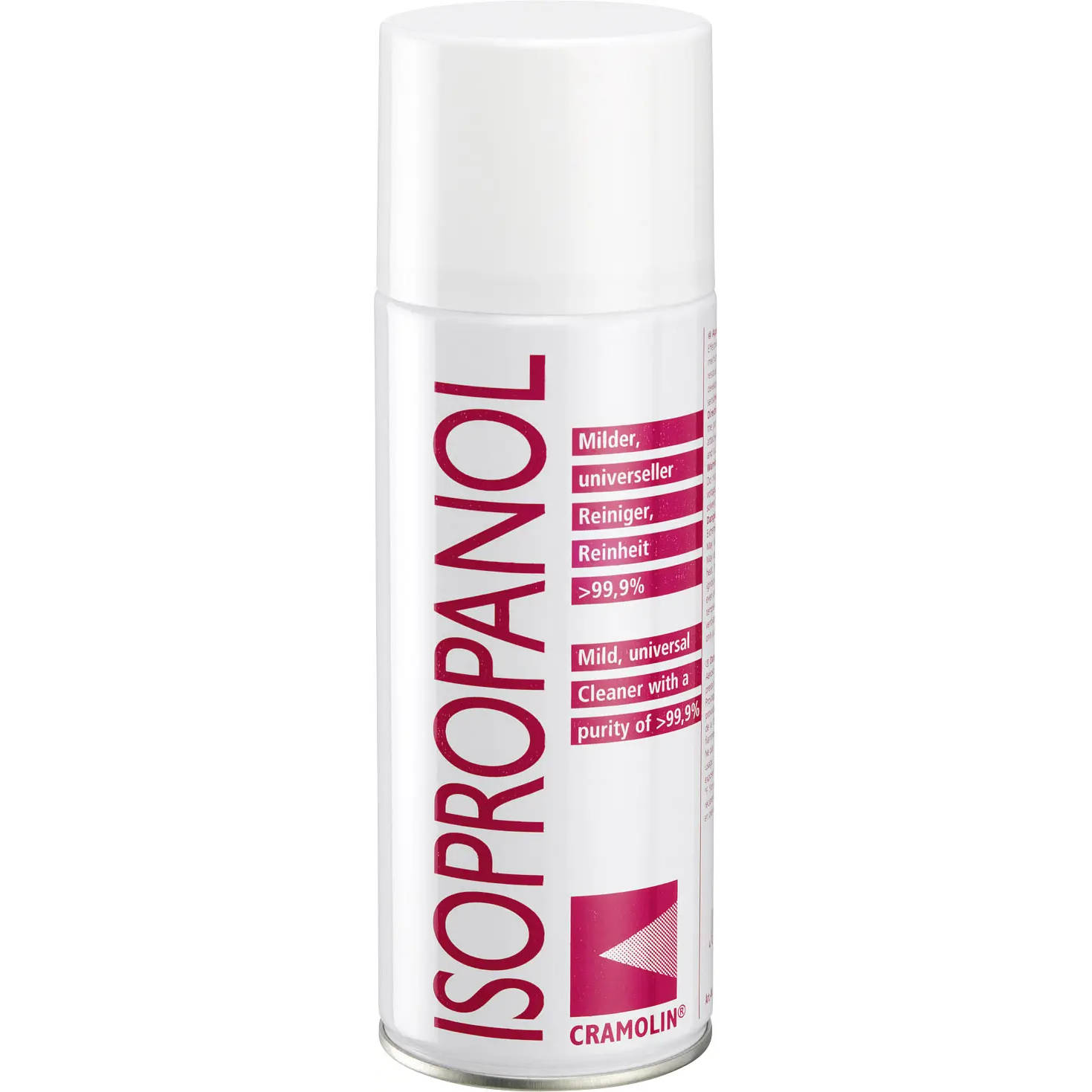

	High-purity isopropyl alcohol (at least 90%)	Removing oils and certain other contaminants when dry cleaning is insufficient	Click here or here

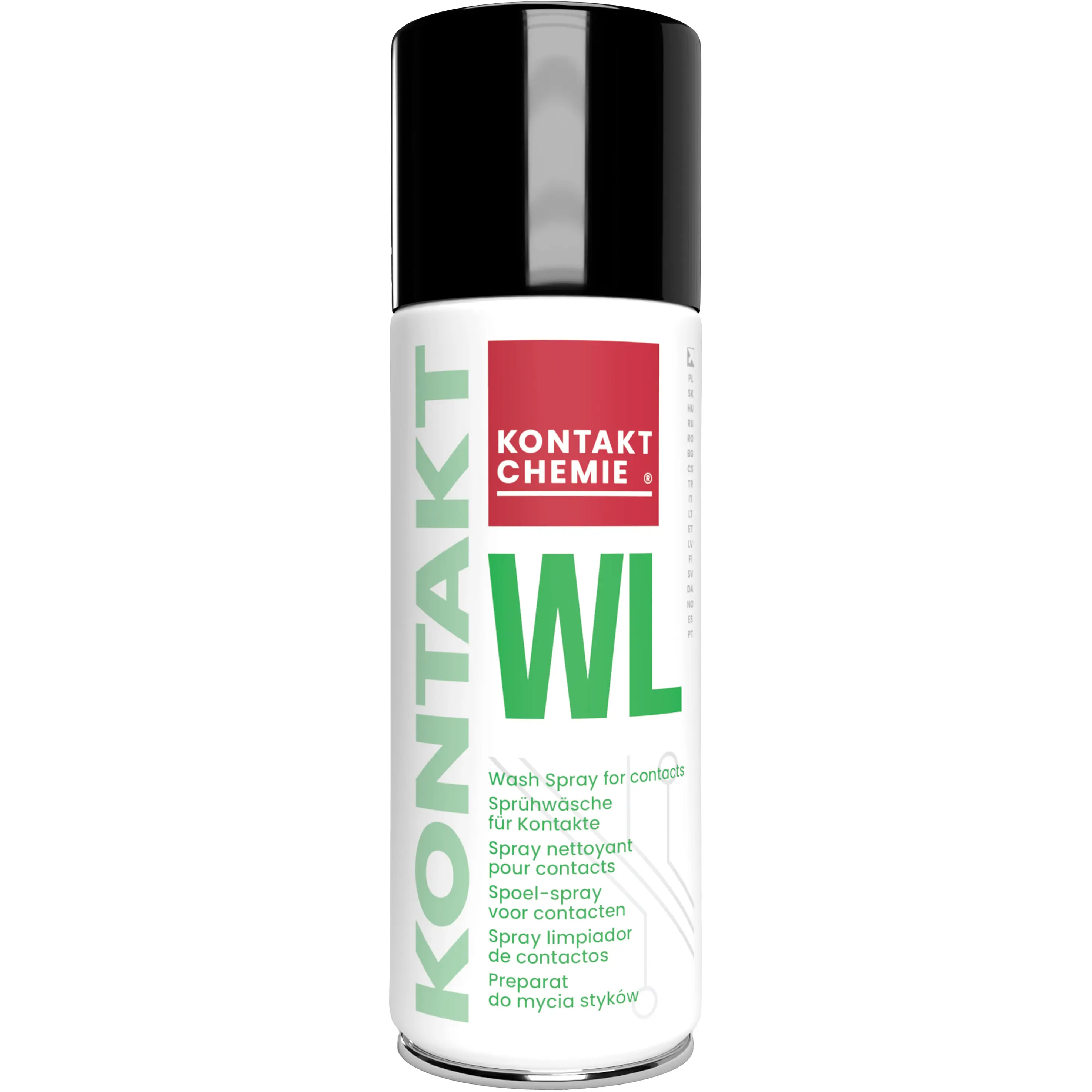

	Suitable residue-free electronics contact cleaner	Optional treatment for more persistent contamination, subject to material compatibility	Click here or here or here

Flashlight: image source (CC0); other images: linked vendors

For precision cleaning, foam swabs designed for electronics are preferable to ordinary household cotton buds. They are available in small sizes and are less likely to leave loose fibres behind.

Not every cleaning tool is suitable for every connector. In particular, USB-C requires tools small enough to fit without applying pressure to the central contact tongue.

Isopropyl alcohol is useful for removing oils, fingerprints and many organic contaminants. However, it is not a universal chemical solution for removing metal oxides or repairing corroded contacts.

Step-by-step instructions

Step 1: Shut down and disconnect the equipment

Before cleaning:

• Shut down the laptop or PC completely. Do not leave it in Sleep or Hibernate mode.
• Disconnect the charger from or power off the power supply.
• Disconnect all external devices and cables from the relevant ports.
• Make sure the peripheral and its cable are disconnected from external power sources.
• Choose a clean, dry and well-lit workspace.

Do not insert tools or apply cleaning liquids while the equipment is operating.

Keep in mind that a laptop still contains an internal battery even after shutdown. Certain circuits may remain electrically connected. Therefore, particular care is required to prevent liquids or conductive objects from entering the ports. Optionally, you can disconnect the laptop's battery from the mainboard. See this article: Information on battery removal

Step 2: Inspect the connector

Use a small flashlight to inspect the affected port and the corresponding cable plug.

Look for:

• Dust, lint or accumulated particles.
• Dirt or other visible deposits.
• Unusual discolouration or apparent corrosion.
• Bent, damaged or displaced contacts.
• Damage to the surrounding connector housing.

If you notice visibly damaged contacts, a loose internal component or significant corrosion, stop here and contact our support team.

Do not attempt to straighten individual contacts or scrape away corrosion with a metal tool.

Step 3: Remove loose dust and particles

Begin with the least invasive cleaning method.

1. Position the device so that loose particles can fall out of the port rather than further inside it.
2. Use a manual rubber air blower to direct several short bursts of air into the connector.
3. Inspect the connector again to determine whether the visible contamination has been removed.

Alternatively, an electronics-compatible compressed-air product may be used cautiously. If it's a can of compressed air, make sure to keep the can vertical to avoid spraying liquid propellant into the connector. See also: Instructions for use of compressed air spray

Do not blow into the port with your mouth. Moisture from your breath can introduce additional contamination.

Avoid household vacuum cleaners, unfiltered workshop compressors and other equipment that may introduce static electricity, moisture or excessive air pressure.

Step 4: Carefully clean with a soft brush

If loose deposits remain, a soft cleaning brush can be used.

Example: Mini DisplayPort

Mini DisplayPort has a relatively accessible rectangular opening.

Plug:

A small, clean, soft-bristled brush can be used to loosen contamination near the opening and on accessible surfaces.

Use gentle movements without forcing the brush into the connector.

Avoid stiff bristles, excessive pressure or aggressive scrubbing. The intention is to remove contamination, not to polish or mechanically abrade the metal contacts.

Example: USB-C

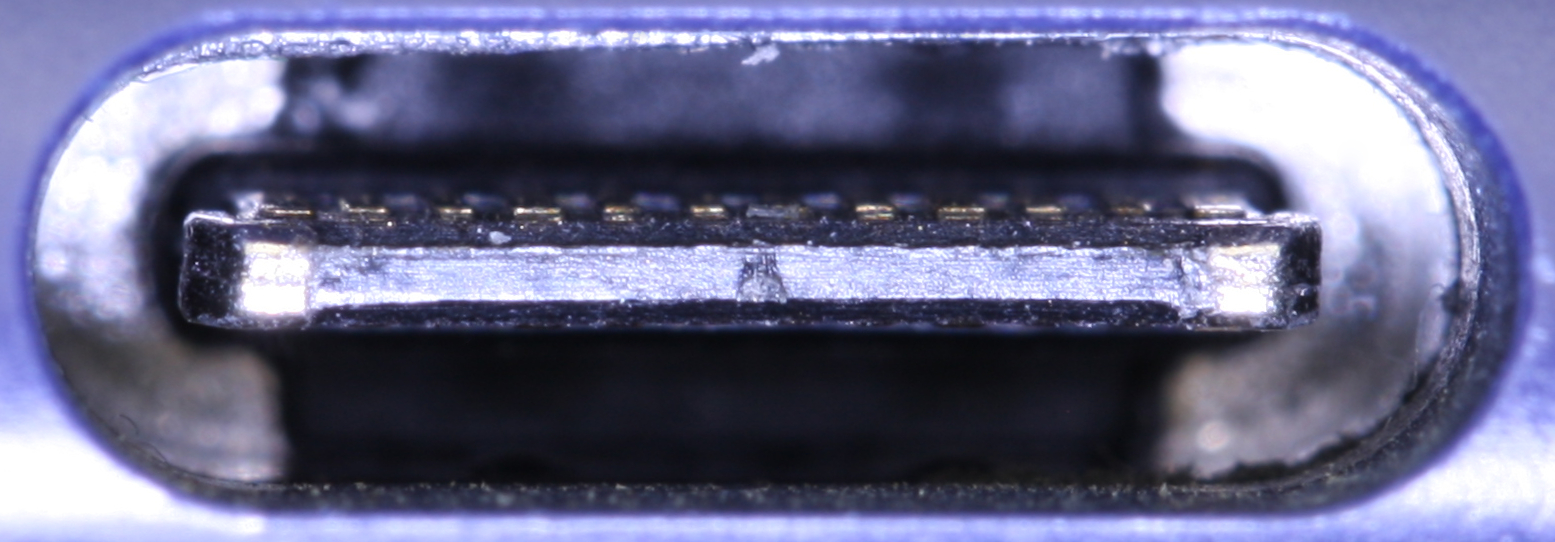

USB-C requires additional caution. Inside the port is a thin central tongue carrying electrical contacts on both sides.

Port:

Plug:

Do not bend, lever or apply sideways pressure to this tongue.

Use a particularly small, soft brush that can enter the available space without force. Work gently around the central tongue and remove loosened particles with a manual air blower.

If contamination is firmly lodged inside the connector and cannot be removed without applying pressure, stop rather than risking mechanical damage.

Step 5: Clean the corresponding cable plug

The cable plug is an equally important part of the electrical connection.

Inspect it for dirt, discolouration or mechanical wear.

Remove loose particles with a soft brush or air blower.

Accessible exterior surfaces can be cleaned with a dry, lint-free cloth.

If there are visible oily deposits or other persistent contaminants, carefully clean accessible contact surfaces with a precision swab lightly moistened with high-purity isopropyl alcohol.

Important precautions:

• Apply the alcohol to the swab, not directly to the connector.
• Use only a very small amount. The swab must not drip.
• Do not force the swab into small openings.
• Avoid introducing liquid into the cable assembly or any integrated electronics.
• Allow the connector to dry completely before reconnecting it.

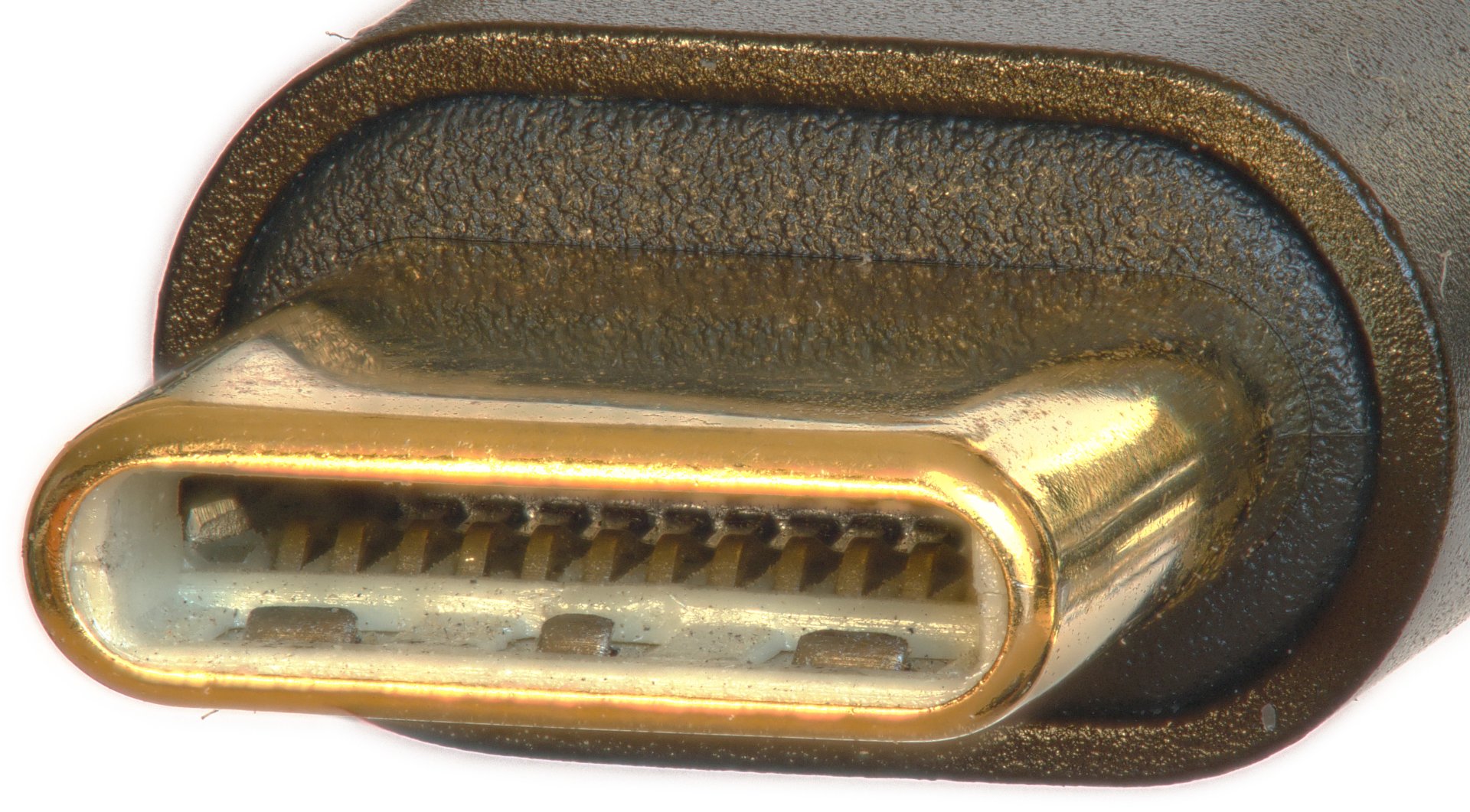

For USB-C plugs, the electrical contacts are recessed within the metal shell. Only attempt contact cleaning if the selected tool fits safely.

If a cable plug is heavily contaminated, corroded or physically damaged, replacing the cable may be safer and more effective than attempting aggressive cleaning.

Step 6: Allow everything to dry and reconnect

If no cleaning liquid was used, the connection can be tested after confirming that no loose particles or brush fibres remain.

If isopropyl alcohol or another approved cleaner was used, allow sufficient time for complete evaporation.

Never reconnect or power on equipment while any connector is still damp.

Once all components are clean and completely dry:

• Reconnect the cable carefully and fully.
• Make sure the plug is not under excessive mechanical strain.
• Switch the equipment back on.
• Test the previously problematic application.

For example, if the problem occurred with a VR headset, repeat the same application and display settings under which the interruptions were previously observed.

What about dedicated contact-cleaning sprays?

Specialised contact cleaners can help remove contamination that is difficult to eliminate through dry cleaning alone.

However, there is an important distinction between a contact cleaner and a contact protection or conditioning product.

Contact cleaners

Contact cleaners generally use solvents to remove oils, grease, dirt and certain surface deposits. Some formulations are also designed to help remove light oxidation. Example:

• presto Contact Cleaner (Article No. 306192)

According to its manufacturer, the product:

• Removes dirt and oxidation.
• Evaporates without leaving cleaning residues.
• Is non-conductive and non-corrosive.
• Is suitable for various electrical connections and contacts.

Its formulation uses aliphatic hydrocarbons and alcohol.

The manufacturer requires waiting at least 15 minutes after cleaning before switching equipment back on, so that flammable solvent vapours can dissipate.

Contact protection sprays and contact enhancers

A different category of products is designed to protect electrical contacts against humidity and corrosion. Example:

• presto Contact Spray (Article No. 157141 or 429910)

This is marketed as a moisture-displacing and corrosion-protective treatment for electrical connections. Such products can be useful in appropriate electrical applications.

Please note: contact protection products will leave persistent protective substances on the treated surfaces – something akin to an oily film. An unsuitable protective coating may introduce unwanted residues or migrate into areas where it is not intended.

Therefor, we only recommend applying contact protection sprays, lubricants or conductive additives in the absence of other, less invasive solutions.

A clean, dry and mechanically intact connection is generally preferable to an unverified chemical treatment.

Which cleaning methods should be avoided?

To prevent unnecessary damage, avoid the following:

• Do not insert needles, screwdrivers, metal tweezers or similar objects into the connectors.
• Do not use sandpaper, wire brushes, glass-fibre pens, abrasive erasers or other materials that could remove contact plating.
• Never pour cleaning fluid into a connector or attempt to flush a laptop port with large amounts of solvent.
• Avoid acetone, paint thinner, household cleaners, acidic corrosion removers and other products not intended for sensitive electronics.
• Do not apply petroleum jelly, general-purpose lubricants, silicone sprays or similar products to high-speed signal contacts.
• Do not use a hairdryer or other heat source to accelerate drying.

Also avoid repeatedly plugging and unplugging a connector unnecessarily in an attempt to mechanically remove contamination. Although insertion and removal involve a normal wiping action between the contacts, excessive connection cycles contribute to wear.

Do not use WD-40 for contact cleaning or lubration

Do not use conventional WD-40 Multi-Use Product or similar lubricating sprays on PC or laptop data connectors. Although WD-40 can displace moisture and protect against corrosion, it leaves an oily protective film that is unsuitable for these miniature, high-speed signal connections. This should not be confused with WD-40 Specialist Contact Cleaner, which is a separate, fast-drying, residue-free product specifically formulated for electrical contacts.

How can I prevent contact problems?

For ordinary indoor use, no special maintenance schedule is necessary.

However, certain precautions are worthwhile if the device is regularly used in demanding environments.

Protect the connectors from environmental exposure

Keep the device away from unnecessary dust, moisture and liquid contamination.

If frequently travelling or working outdoors, a suitable protective case can help prevent environmental exposure during transport.

Unused external ports can also be protected with appropriately designed, clean dust covers, provided they fit correctly and do not damage the connectors. Examples: subtel Dust Plug Set (Black)

Avoid condensation

When moving equipment between environments with significantly different temperatures, allow it to acclimatise before use.

This is particularly relevant when moving a cold laptop from an air-conditioned environment into warm, humid outdoor air.

If condensation has formed, do not connect peripherals or switch on the equipment until it has dried completely.

Reduce mechanical stress

Long cables can place considerable strain on connectors. Where possible:

• Support heavy or long cables rather than allowing their weight to pull directly on the port.
• Avoid sharp bends close to the connector.
• Use suitable cable routing or strain relief to reduce repeated sideways movement.
• Avoid unnecessary adapters and extension cables, particularly for high-bandwidth applications.

Keep cables and plugs clean

Avoid placing exposed cable plugs on dusty or dirty surfaces.

When transporting peripherals, protect their connectors from contamination.

Replace cables that show signs of significant mechanical damage, worn connectors or recurring connection problems.

What if cleaning does not solve the problem?

Contact cleaning can restore reliability when contamination is the underlying cause.

However, it cannot repair bent or broken electrical contacts, excessively worn contact plating, loose or mechanically damaged sockets and similar mechanical defects.

If the issue persists, please contact our support.
